i.MX 93 Evaluation Kit#

Preparation#

The instructions in this section show the preparation before the flashing procedure.

Important

Ensure you replace <factory> placeholder below with the name of your Factory.

  1. Download the necessary files from https://app.foundries.io/factories/<factory>/targets:

    1. Click the latest Target with the platform trigger.

    2. Expand the run in the Runs section which corresponds with the name of the board. Download the Factory image for that machine. For example:

      lmp-factory-image-<machine_name>.wic.gz
u-boot-<machine_name>.itb
imx-boot-<machine_name>

      Note

      The compressed image (.wic.gz) is used since LmP v92. Before, the scripts required a compressed file image (.wic).

  2. Download and extract the file mfgtool-files-<machine_name>.tar.gz:

    tar -zxvf mfgtool-files-imx93-11x11-lpddr4x-evk.tar.gz

    Contents of mfgtool-files-imx93-11x11-lpddr4x-evk :

    ├── bootloader.uuu
├── full_image.uuu
├── SPL-mfgtool
├── u-boot-mfgtool.itb
├── uuu
└── uuu.exe

  3. You should now have the following:

    ├── lmp-factory-image-imx93-11x11-lpddr4x-evk.wic.gz
├── u-boot-imx93-11x11-lpddr4x-evk.itb
├── imx-boot-imx93-11x11-lpddr4x-evk
└── mfgtool-files-imx93-11x11-lpddr4x-evk

Hardware Preparation#

Set up the board for updating using the manufacturing tools:

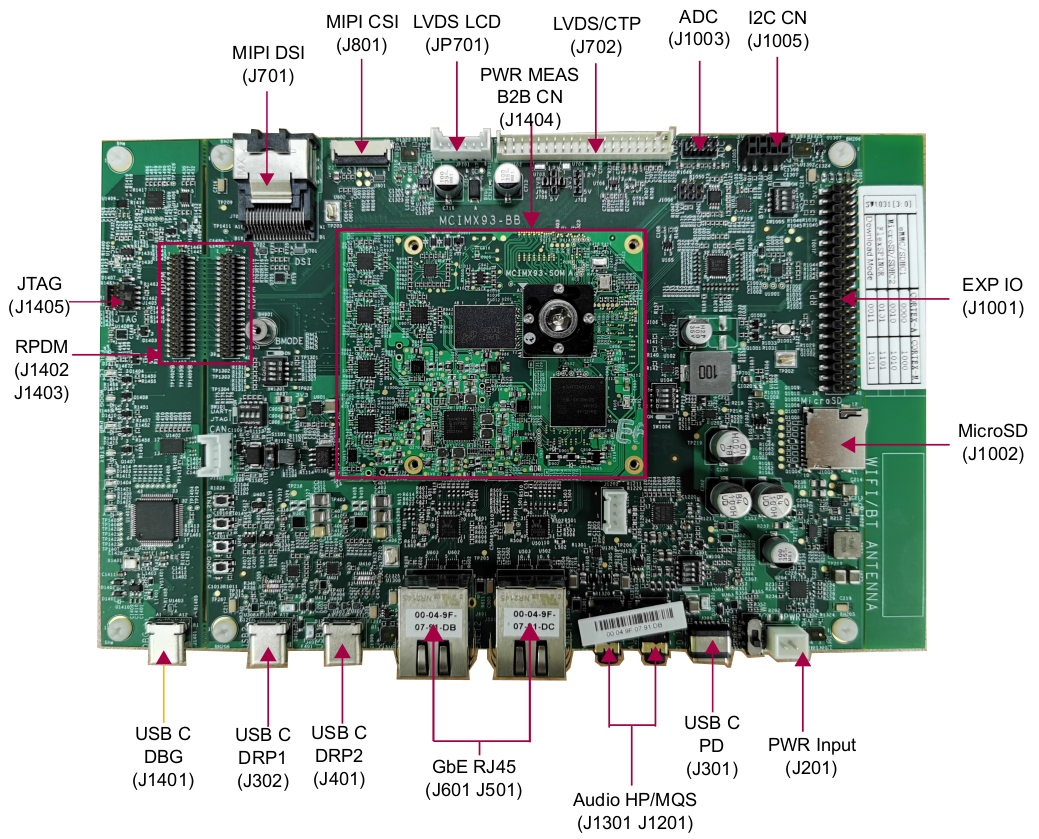

image_board_top

Top view of i.MX 93 EVK

  1. OPTIONAL. Only required if you have problems or want to see the boot console output.

    Connect the USB-C end of the USB cable into debug port J1401. Connect the other end of the cable to a PC acting as a host terminal. Four UART connections will appear on the PC. For example, on a Linux host:

    Using a serial terminal program like minicom, connect to the port with if02 in the name (in this example ttyUSB2). Apply the following configuration:

    • Baud rate: 115200

    • Data bits: 8

    • Stop bit: 1

    • Parity: None

    • Flow control: None

  2. Ensure that the power is off (SW301)

  3. Put the i.MX 93 EVK into programing mode:

    Switch SW1301 to OFF, OFF, ON, ON (from 1-4 bit) to Download Mode.

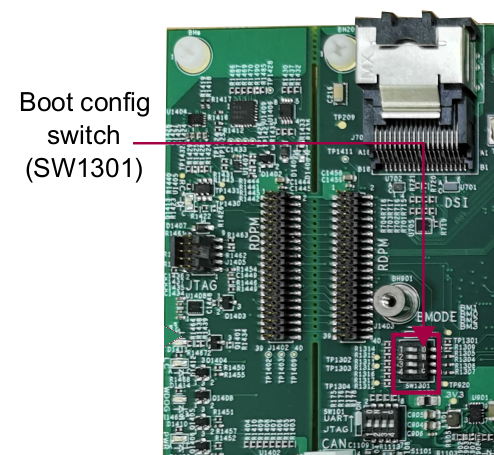

    image_board_SW

    Location of SW1301 dip switch on i.MX 93 EVK

  4. Connect your computer to the i.MX 93 EVK board via the USB-C port 1 Download J401 jack.

  5. Connect the USB-C power plug to the port 2 Power J301 jack.

  6. Power on the i.MX 93 EVK board by sliding power switch SW301 to ON.

Flashing#

Once in serial downloader mode and connected to your PC, the evaluation board should show up as an NXP® USB device.

Follow the instructions below.

  1. Verify target is present:

    $ lsusb | grep NXP
Bus 001 Device 018: ID 1fc9:014e NXP Semiconductors OO Blank 93

    In this mode you will use the uuu tools to program the images to the eMMC. The USB ID may differ if a different SoC is used.

  2. To program the LmP to the EMMC run

    $ sudo mfgtool-files-imx93-11x11-lpddr4x-evk/uuu mfgtool-files-imx93-11x11-lpddr4x-evk/full_image.uuu
uuu (Universal Update Utility) for nxp imx chips -- libuuu_1.4.243-0-ged48c51

 Success 1    Failure 0


 1:92     6/ 6 [Done                                  ] FB: done

  3. Turn off the power

  4. Put the board into run mode

  1. Start the Device Manager

  2. Select View

  3. Select Devices by container

  4. Verify a device like the following: usb_device_windows

  5. Run the command below to program the LmP to the EMMC:

    PS C:\Users\Someone> mfgtool-files-imx93-11x11-lpddr4x-evk\uuu.exe mfgtool-files-imx93-11x11-lpddr4x-evk\full_image.uuu
uuu (Universal Update Utility) for nxp imx chips -- libuuu_1.4.243-0-ged48c51

Success 1    Failure 0


1:92     6/ 6 [Done                                  ] FB: done

  6. Turn off the power

  7. Put the board into run mode.

Put the i.MX 93 EVK into run mode by switching SW1301 to ON, ON, ON, ON to set the board to boot from eMMC.

Power on the i.MX 93 EVK board by sliding the power switch SW301 to ON.
